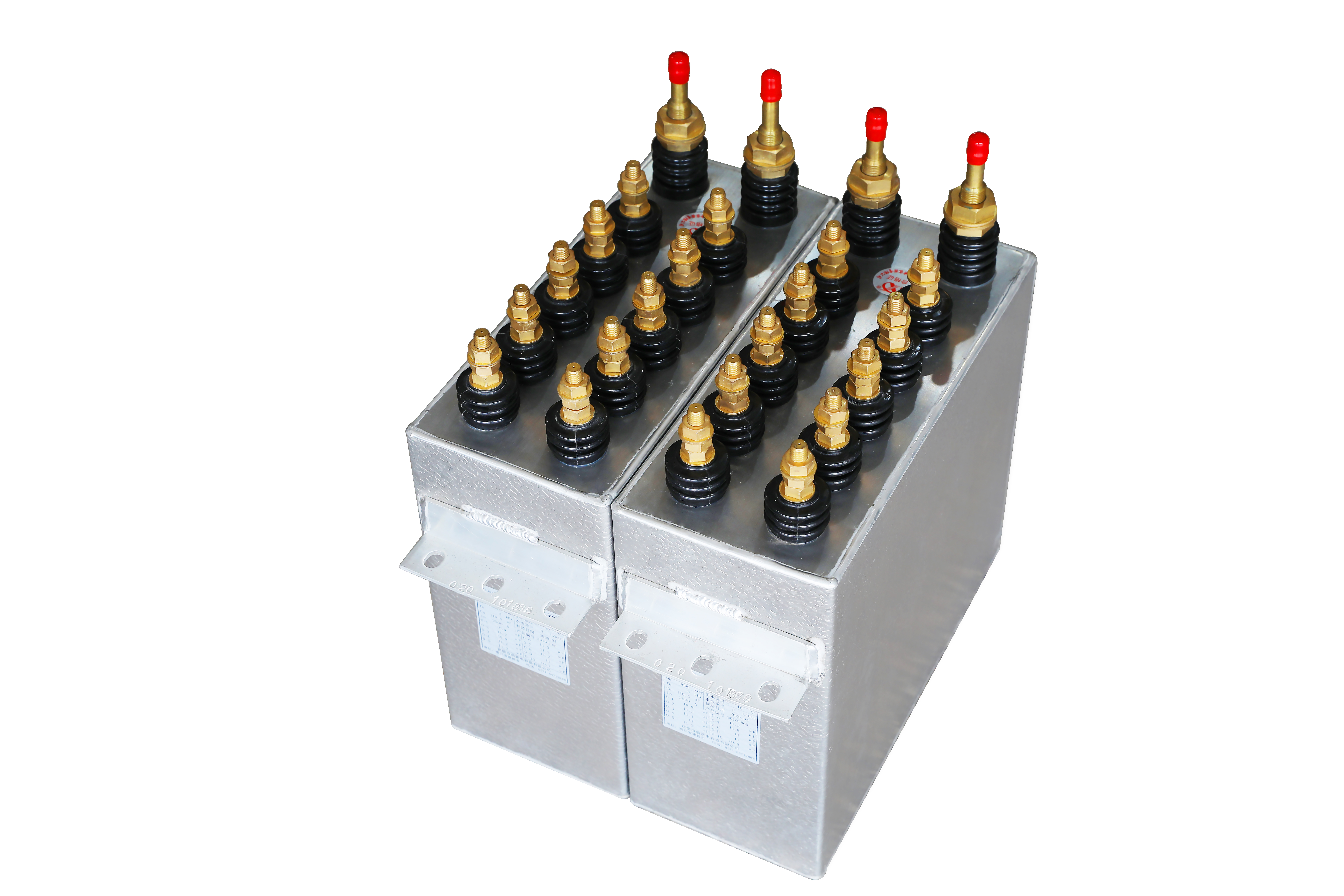

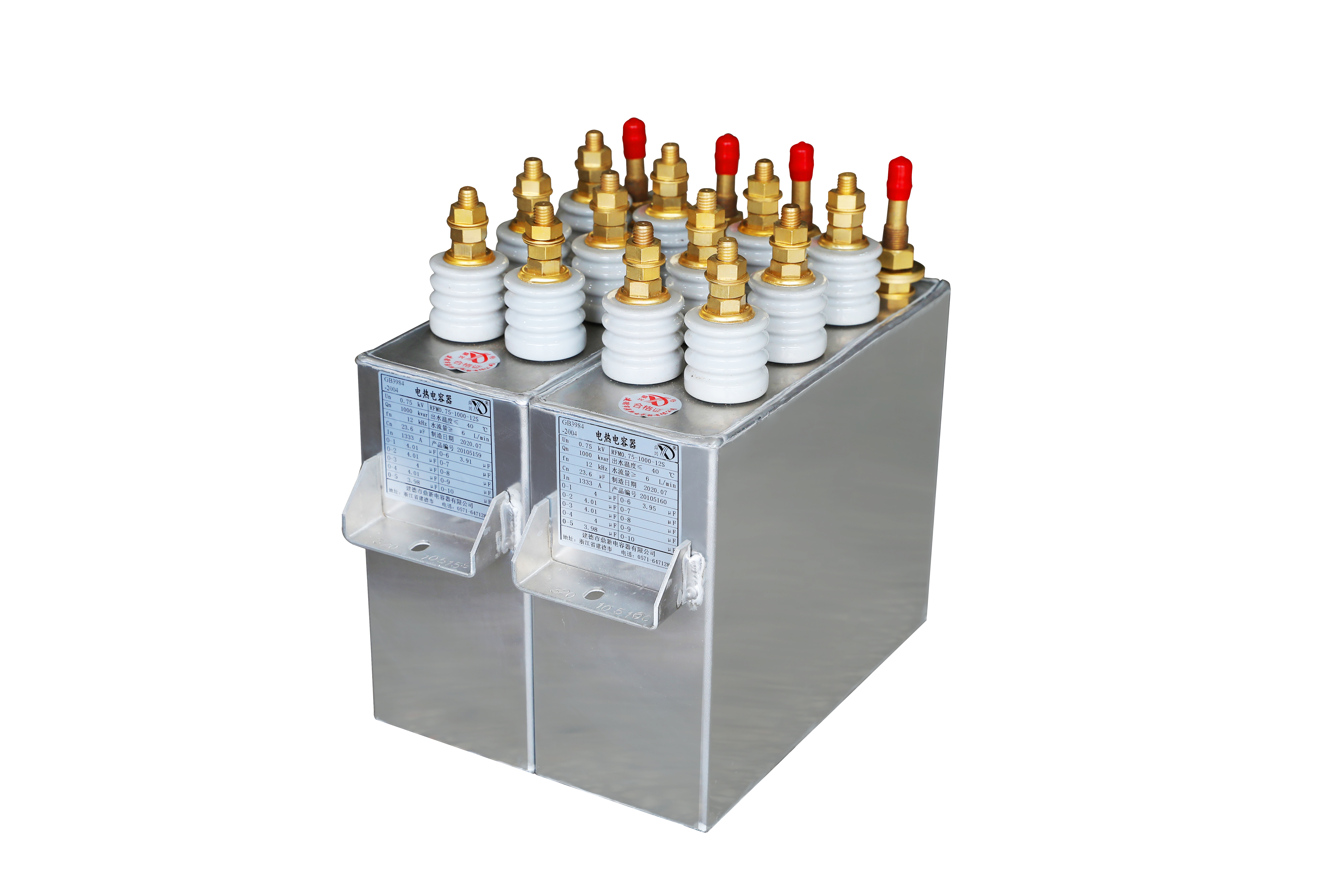

MF Induction Heating Capacitor

Product Description：

MF induction heating capacitor is mainly used in induction heating installations to increase power factor or improve circuit characteristics. The capacitor properties of whole film medium(RFM&RAM type) conforms to standards of  Power Capacitors for Induction Heating Installations:  GB/T3984.1-2004 & IEC60110-1：1998.

According to cooling mode, the capacitor can be classified as water cooled, air cooled and self cooled.

Technical Parameter：

Rated Voltage: max.6.0KV

Rated Capacity: max. 15000Kvar

Rated Frequency: max.10KHz

Operating Conditions：

The capacitor should be installed and operated in the environment which is free of violent mechanical vibration, harmful gases or steams, conductive or explosive dusts.

The ambient temperature should be in the range of －25 to＋50℃. The cooling water in water cooled mode should be purified with outlet temperature below 40℃.

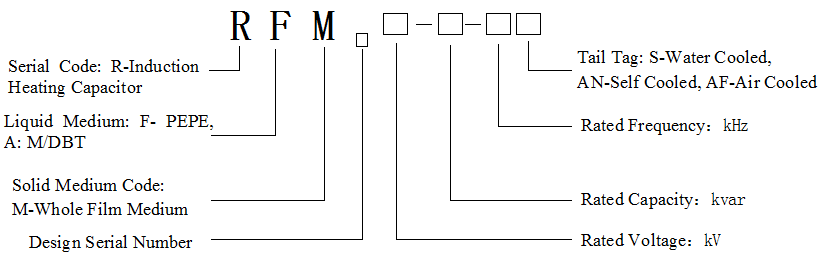

The Significance of Designations




Outside View(Typical Drawing, Customizable):

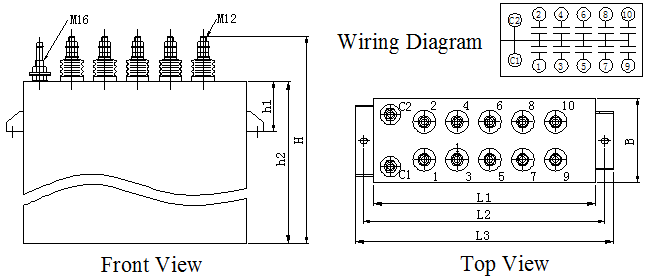

Taps: 10

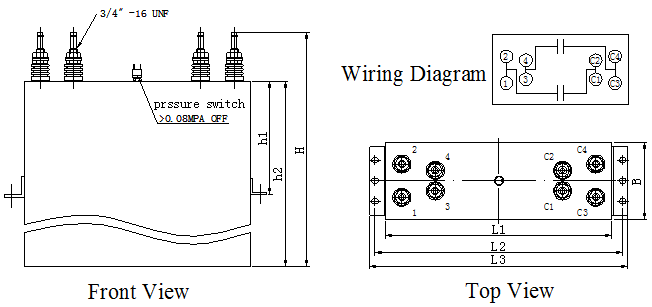

Double Cooling:

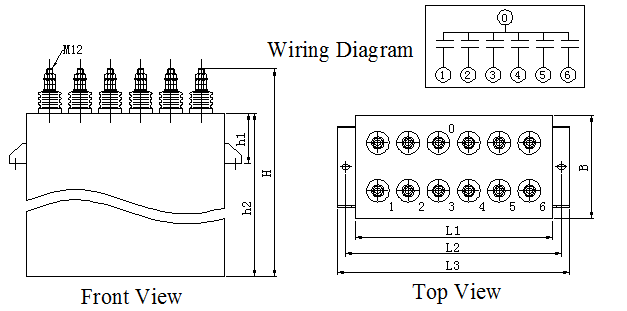

Multi-cooling:

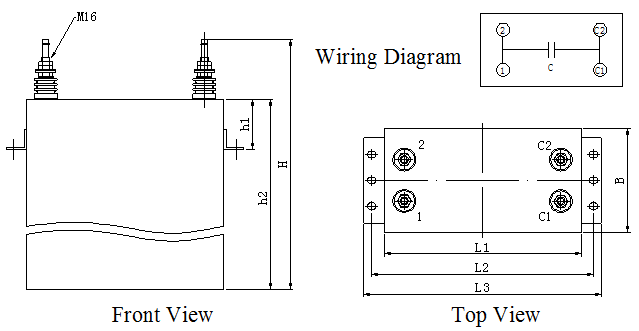

Air Cooling or Self Cooling
